Manual Plastic Check Valves

Ball Check Valves

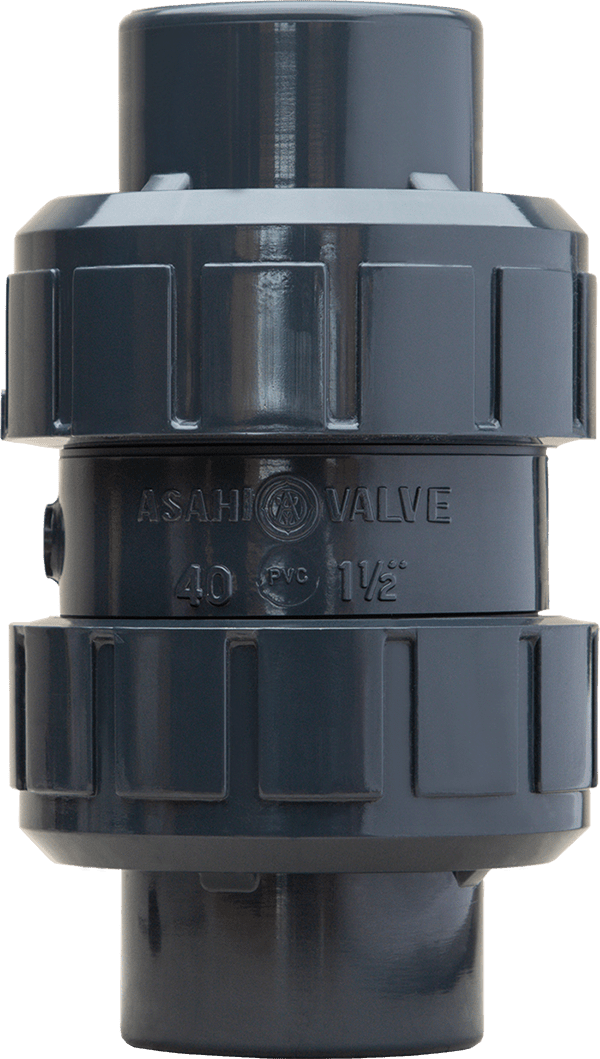

True Union Ball Check Valve (1/2"-2") and Single Union Ball Check Valve (3"-4")

The Asahi/America ball check valve employs a free moving ball, which unseats to permit flow in one direction, but seals against a seat to prevent backflow. It may be installed vertically or horizontally. Also available as foot valve for suction side of pump.

Product Certifications

NSF ANSI CAN 61 G BLUE

  • 1/2"-2" PVC/EPDM
  • 1/2" -2" PVC/FKM
  • 1/2"-2" CPVC/EPDM
  • 1/2"-2" CPVC/FKM
  • 3"-4" PVC/EPDM
  • 3"-4" PVC/FKM
  • 3"-4" CPVC/EPDM
  • 3"-4" CPVC/FKM

Resources

Data Sheet

Specifications

Ideal Applications Include:

Chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants

Specifications

Sizes:

True Union : 1/2" – 2"
Single Union: 3" – 4"

Bodies:

PVC, CPVC, PP and PVDF

Seals:

EPDM, FKM, PTFE

Models:

Socket, Threaded, Flanged, Butt End

Seats:

EPDM, FKM, PTFE

Features/Benefits

  • Uniseat/seal of EPDM or FKM
  • Ball is the only moving part. It unseats to permit flow in one direction but seals against seat to prevent backflow.
  • May be used vertically or horizontally
  • Minimum shut-off of 5 psi
  • All sizes rated for full vacuum service
  • Solid thermoplastic ball

Options
