avsdv

Dymatrix Logo AVSDV

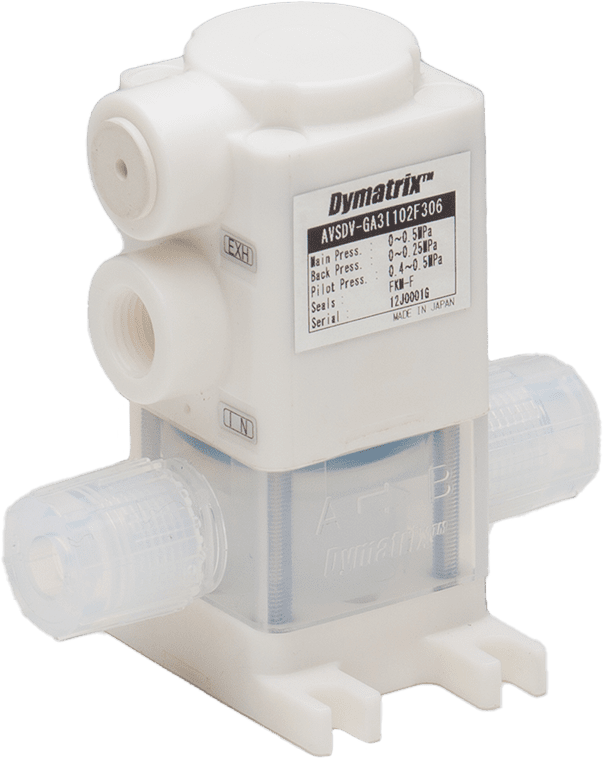

Actuated 2-Way Diaphragm Valve

Single diaphragm valves are an economical solution for a commodity diaphragm valve. SDV offers a large size range with multiple connection options. Available with air actuated, manual multiturn and toggle actuators.

Diaphragm valves feature high cycle life and a compact design. Stocked PFA models include manual multi-turn diaphragm and pneumatic normally closed.

Resources

Data Sheet

Ideal Applications Include:

DI Water, Chemical, Air

Specifications

Size:

6mm through 32mm (1/4" - 1")

Models:

Pneumatic

Connections:

Flare, S-300, and Custom

Features/Benefits

  • Excellent durability
  • Wide variety of sizes, handle types and base plates

Options

  • Travel Stop
  • Bypass
  • Indicator
