Chem Proline® Advanced PE

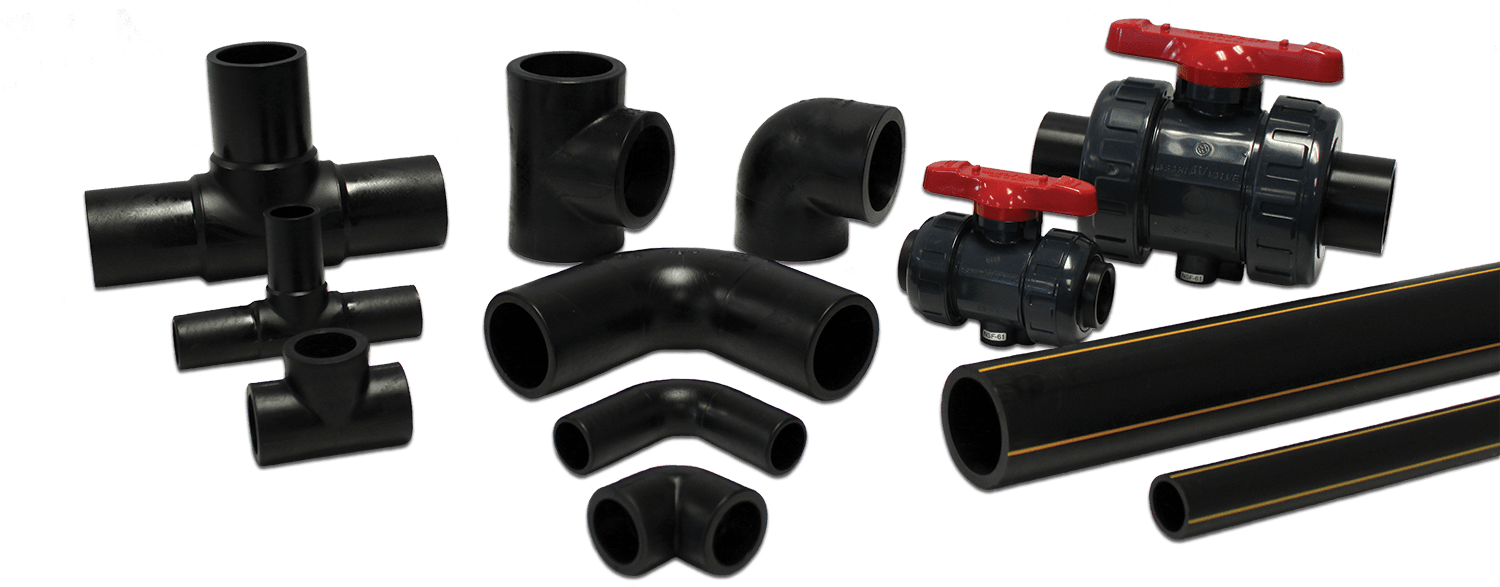

Chem Proline® Advanced Polyethylene (PE) Piping System
Chem Proline® is composed of the latest evolution in Advanced Polyethylene (PE) resin technology. This new advanced PE material possesses excellent physical and mechanical properties. These properties include: stress crack resistance, slow crack growth resistance, ductility, impact resistance, abrasion resistance and brittleness resistance. Now available in 40″ – 98″ size as well!
Capable of handling some of the harshest chemical applications with a long-term expected useful life, Chem Proline® offers a greater value over metal, FRP, lined steel, or other thermoplastic piping systems like PVC and CPVC. Chem Proline®’s superior properties make it the only Polyolefin material able to handle certain chlorinated services like sodium hypochlorite. UV resistant, light weight, proven fusion joining technology, Chem Proline® is perfect for most chemicals found in the water treatment process.
Resources:
Catalog
Specifications
Ideal Applications Include:
pH range 1-14, bleach, process chemical and waste, caustic, acids, industrial water
Certifications:
PE Pipe Supply Range:
Polyethylene Pipe and Fittings:
Standard: 20 – 315mm (1/2″ – 12″)*
*Larger sizes are available. Please contact Asahi/America for more information.
Gauge Guards
- Available without gauge for field instruments, 1/4″ SS FPT threaded port
- gauge ranges available 0-60psi, 0-100psi, and 0-160psi
- 1/2″ advanced PE SDR 7 connection
- PTFE diaphragm prevents corrosion to the gauge/instrument
Degassing Valves
- Automatic bleeding of trapped gas in piping systems
- Ideal for off-gassing chemicals, like sodium hypochlorite
- Easy disassembly for cleaning
- 1/2″ Advanced PE connection
- Available in FKM or EPDM
Diaphragm Check Valves
- Diaphragm interior seals at much lower pressures than ball checks
- Socket ends ideal for chemical feed skids
- Short, compact design
- Sizes offered: 20mm, 25mm, and 32mm socket
- Available in FKM and EPDM
Back Pressure/Relief Valves
- Works as back pressure relief valve
- Available in spigot, socket union, or butt union
- Sizes offered: 20mm, 25mm, and 32mm
Pulsation Dampener
- 10-cubic-inch body minimizes pulsations through pipe system from chemical feed pump
- Standard 32mm spigot connection
- Factory reduced 20mm or 25mm also available
- Available in FKM or EPDM
Sightglass
- Double wall construction
- Inner Pyrex tube for chemical resistance
- Outer acrylic tube for durability and protection of inner tube
- Sizes offered: Only available in 1/2″ Advanced PE spigot for butt or socket weld
- Available with FKM and EPDM end seals
- Revolutionizing Advanced PE chemical compatibility
- Fused system eliminates cement and threads
- Save time by installing pipes directly in rough trenches
- Resistance to crack propagation
- Butt fittings and valve with butt end connectors now available
