Manual Plastic Check Valve Options

Foot Valves (1/2" – 4")

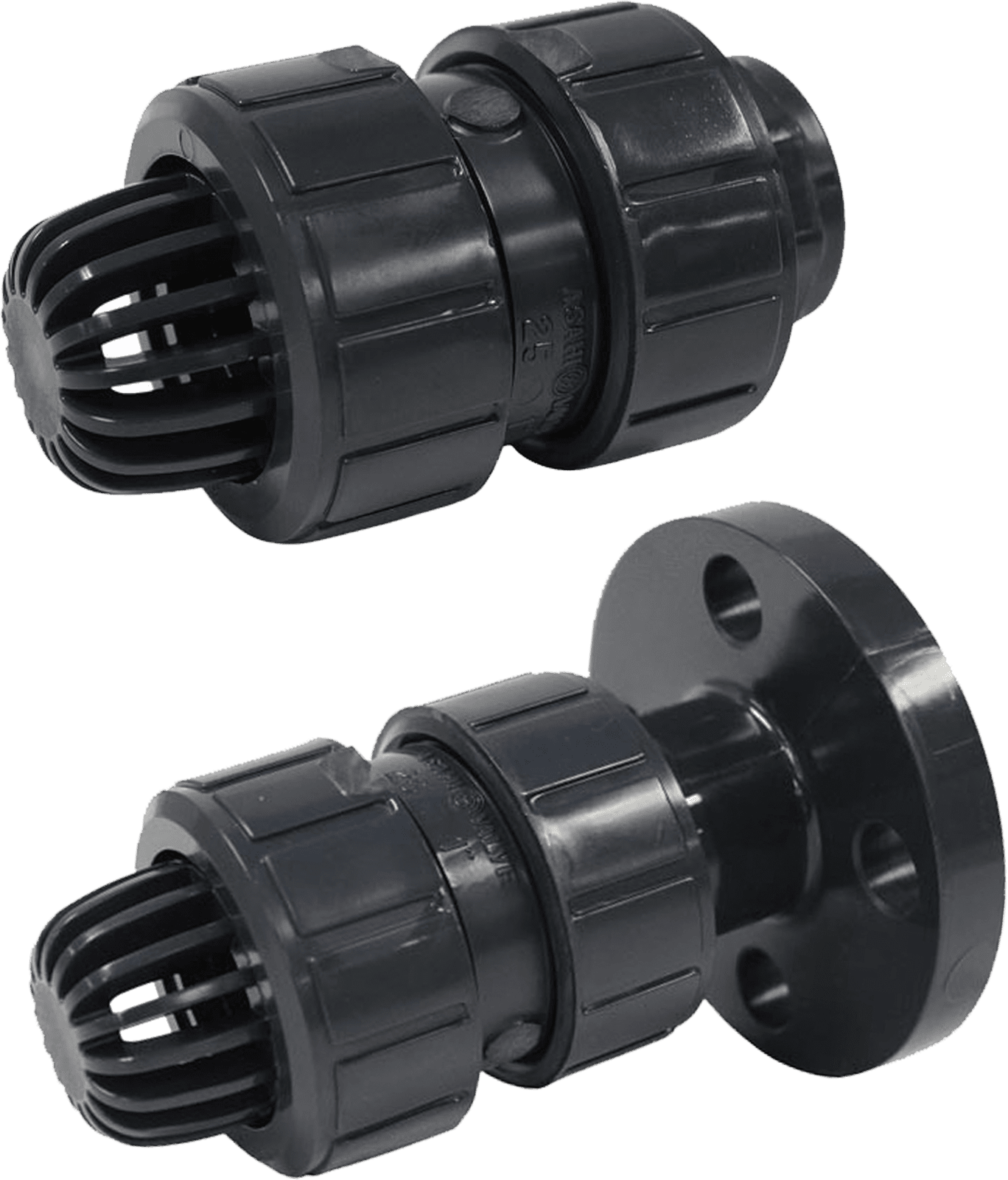

A ball check valve with a foot screen can be installed vertically or horizontally on the suction side of a pump. The foot valve is an optional ball check valve arrangement where a screen is fitted into the inlet end of a ball check valve. This screen is used to filter large debris and solids from a fluid to prevent damage to pumps, clogging of valves and to protect downstream instrumentation. Foot valves can be typically found anywhere there is a check valve used as an intake. This includes pump inlets, lift stations and drains.

Resources

Data Sheet

Ideal Applications Include:

Chemical Processing, Water & Wastewater, Landfills, Irrigation, Food Processing, Mining

Specifications

Sizes:

True Union: ½" – 2"
Single Union: 3" – 4"

Bodies:

PVC

Seals:

EPDM, FKM

Models:

Socket, Threaded, Flanged (ANSI), Butt End

Seats:

EPDM, FKM

Options:

Screen Options: PVC, CPVC, PP, PVDF

Features/Benefits

  • Uniseat/seal of EPDM or FKM
  • Ball is the only moving part. It unseats to permit flow in one direction but seals against seat to prevent backflow.
  • May be used vertically or horizontally
  • Minimum shut-off of 5psi
  • All sizes rated for full vacuum service
  • Solid thermoplastic ball
  • Serves as a pre-strainer for large debris
  • Installs in existing valves
  • Screens available in a variety of thermoplastic materials

Options

  • PTFE coated FKM uniseat/seal
  • Spring-loaded ball to assist ball in seating faster
  • Screen options: PVC, CPVC, PP, PVDF
