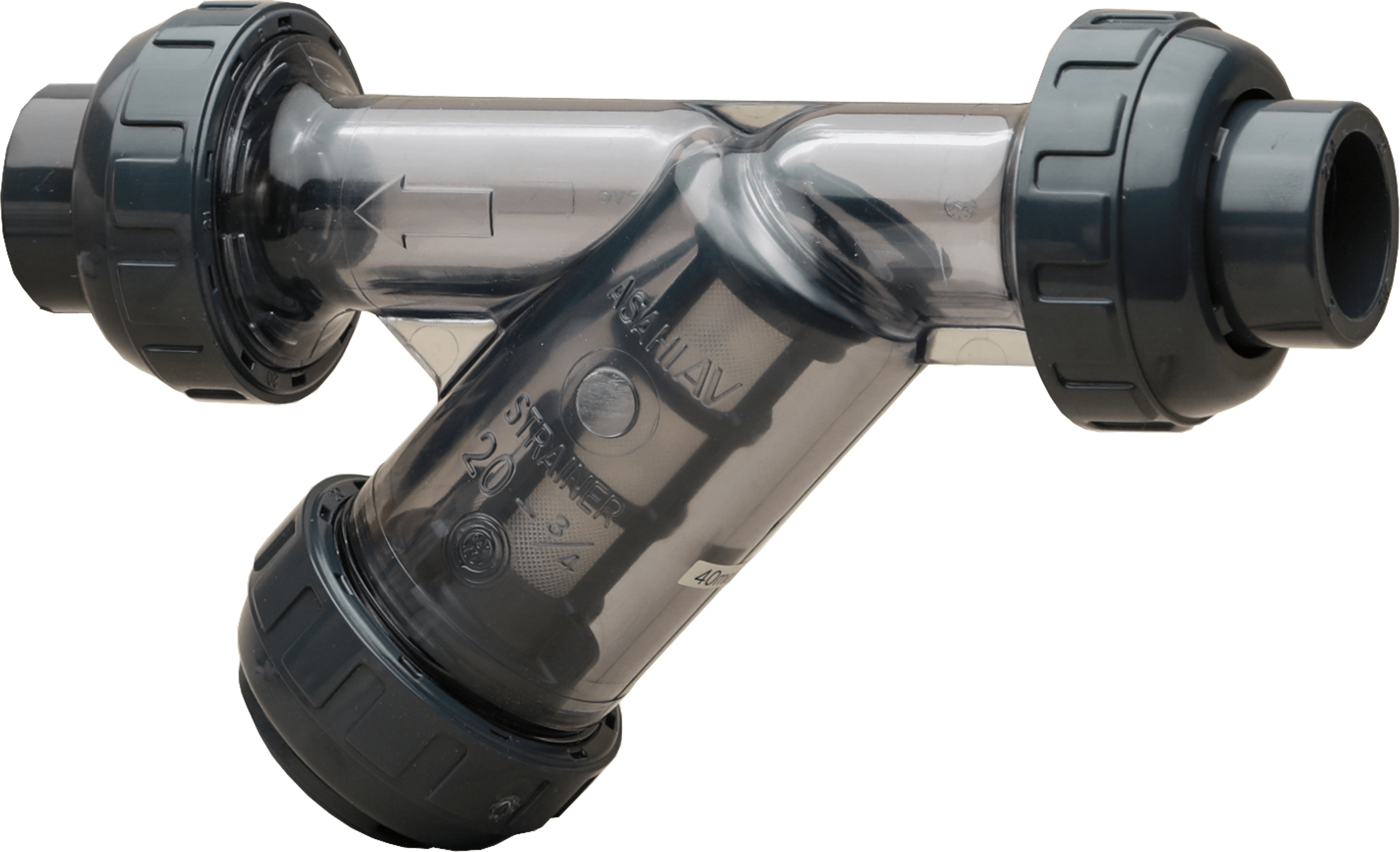

Sediment Strainers (1/2” – 4”)
Click to enlarge

Sediment Strainers

Sediment Strainers (1/2” – 4”)

Sediment strainers protect pipeline components such as pumps and meters by removing suspended solids and impurities. Transparent thermoplastic construction permits easy detection of the screen’s condition. Also available with an in-line clean out valve to flush accumulated solids out of the strainer port.



Resources:

Data Sheet

Ideal Applications Include:

Chemical processing, aquariums, mining, water treatment, landfills

Certifications:

NSF Certification

Specifications:

Sizes:

1/2″ – 4″

Body:

PVC

Seals:

EPDM, FKM
Sizes 1/2″ – 4″ PVC/EPDM/FKM
Models NSF-61 Certified

Models:

Socket, Threaded, Flanged

Options:

PVC: 30 and 40 mesh
Stainless Steel: 20, 40 and 60 mesh

Screens:

Standard: 20 mesh PVC

  • True union design facilitates installation or repair without expanding the pipeline
  • Large filtration capacities and low pressure drops
  • Transparent PVC strainer body permits easy evaluation of filter screen’s condition
  • Complete thermoplastic construction
  • Pressure rating: 1/2″ – 2″(150psi); 3″ and 4″(85psi)
  • Sizes 1/2″ – 2″ supplied with two sets of end connectors (socket and threaded)
