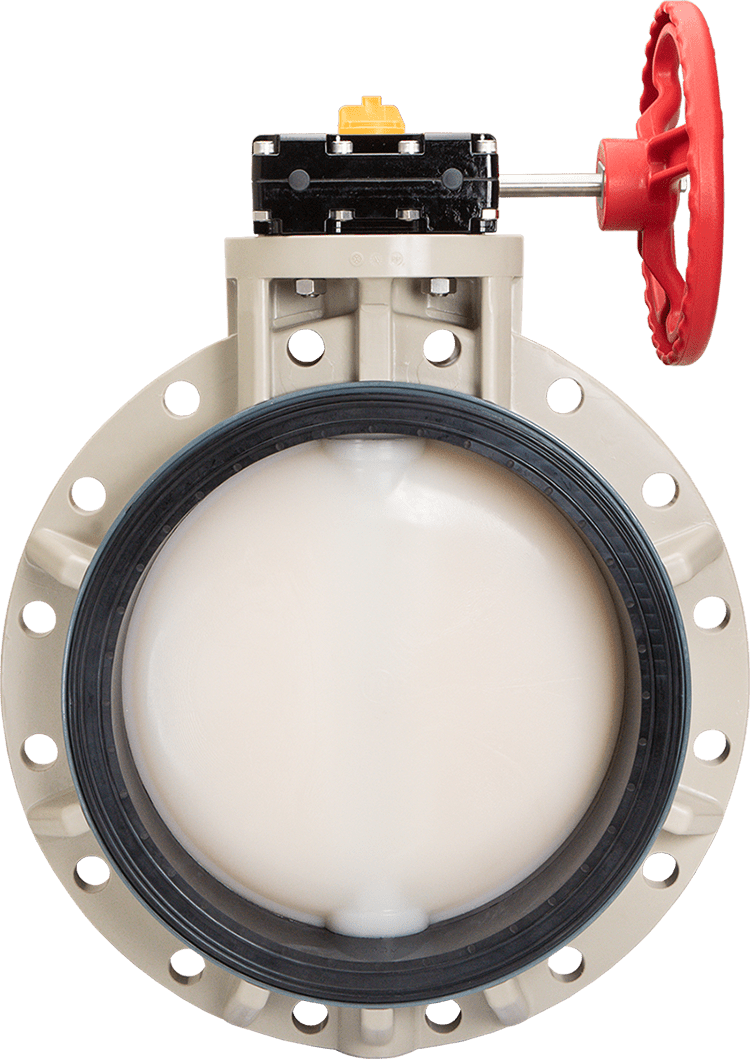

Type-56 Butterfly Valve (16″)
Type-56 butterfly valves are quarter turn plastic valves with equal percentage type flow characteristics. They provide moderate flow control and therefore can be used for both on/off and modulating service. Good tolerance to suspended solids but not recommended for use with slurries or debris. The Type-56 butterfly valve is well suited for a wide variety of fluid flow applications. Can be pneumatically or electrically actuated.
Resources:
Data Sheets
Dimensional Guides
Specifications
- Specifications – Type-56 Butterfly Valve
- Specifications – Butterfly Valves for Landfill Applications
Ideal Applications Include:
Isolation valves, control valves, chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation
Specifications:
Size:
16″
Bodies:
PP, PVDF
Seats:
EPDM, FKM, or Nitrile
Seals:
Same as seating material
Models:
Wafer Style
Operators:
Gear
Discs:
PP, PVDF
Stems:
403 and 316 stainless steel, titanium, Hastelloy C®‡
- Standard model 16″ has PP body and PP disc as standard
- 403 stainless steel shaft has full engagement over the entire length of the disc and is a non-wetted part, totally isolated from the media
- Only solid and abrasion-resistant plastic disc and elastomeric liner are wetted parts
- ISO bolt circle on top flange– no body or stem modifications required for accessories or activation
Pneumatic Actuation
Electric Actuation
