EM-Technik™ PFA/PTFE Valves

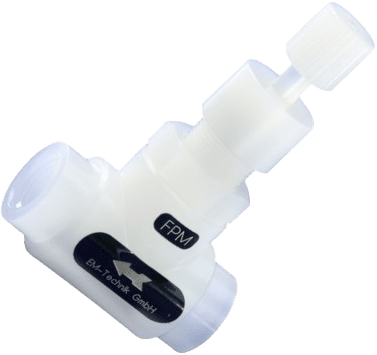

Needle Valves
Needle valve features ultra precise flow control for critical high purity and aggressive fluids. The needle tip is integrated into the PTFE diaphragm.
Resources:
Data Sheet
- Please contact the Asahi/America Technical Services Team for the appropriate data sheet at 1-800-343-3618 or [email protected]
Ideal Applications Include:
Gas and Liquid Flow
Specifications:
Sizes:
1/8″ – 1/2″
Body Material:
PPn, PVDF, PFA O-Ring FKM*
Spindle:
PCTFE
Maximum Pressure:
10 bar @ 20° C
Maximum Temp:
- PP – 90° C
- PVDF – 120° C
- PFA – 180° C
* EPDM or FFKM available upon request
- High Media Resistance with Multiple Materials
- Compact, Light and Easy to Use Design
- Weldable to Asahi Piping Material
- Ideal for Use with Instrumentation Fittings as a Sampling Valve
- Straight or Angle Needle/Flow
- Panel Mounting
