EM-Technik™ PFA/PTFE Valves

Ball Valves

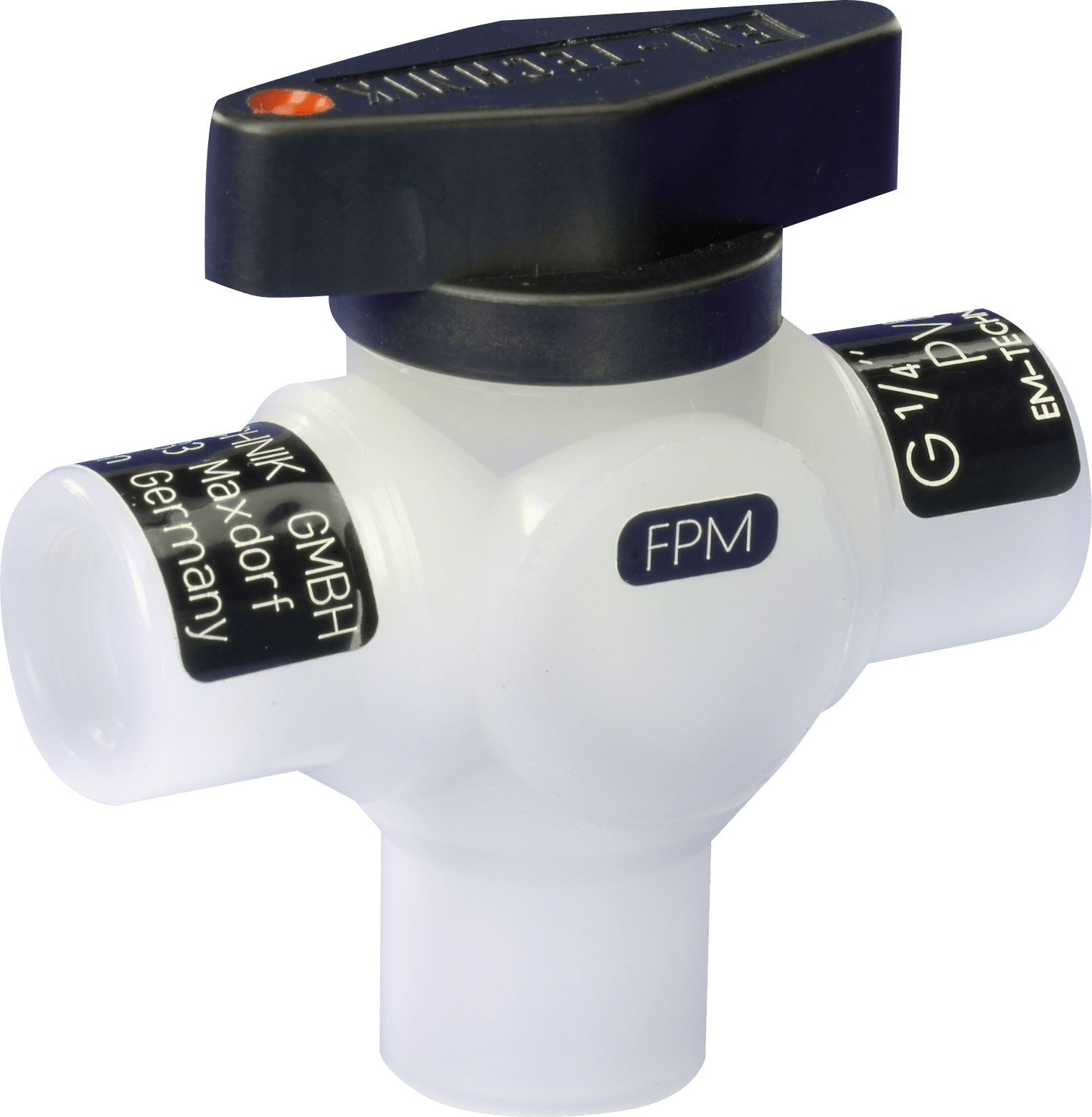

EM-Technik™’s 2 to 5-way ball valves (Series 6L) are available in PP, natural PP, PVDF and PFA. These ball valves are manually operated.

Document Finder Ball Valves Resources

Resources:

Data Sheet

Series 6L Ball Valves

Ideal Applications Include:

Gas and liquid flow

Specifications:

Sizes:

6mm – 20mm (1/4″ – 1/2″)

Material:

PP, PVDF, PFA

Seat:

PTFE

Connection:

G or NPT Thread

Seals:

FKM, FFKM optional
Bore 1/4″ valve has a mm bore (0.157″)
1/2″ valve has a 8mm bore (0.393″)
Manual, Pneumatic or Electric actuated

Features/Benefits

High media resistance with multiple materials
Compact, light and easy to use design

Actuation

Electric part turn actuator
Pneumatic part turn actuator

Options

Zero Volume Fitting
Mounting Clips
Electric or Pneumatic Part Turn Actuators

Resources

Data sheet – Series 6L Ball Valves
