Dymatrix® PVC/PP Valves
Ball Valves

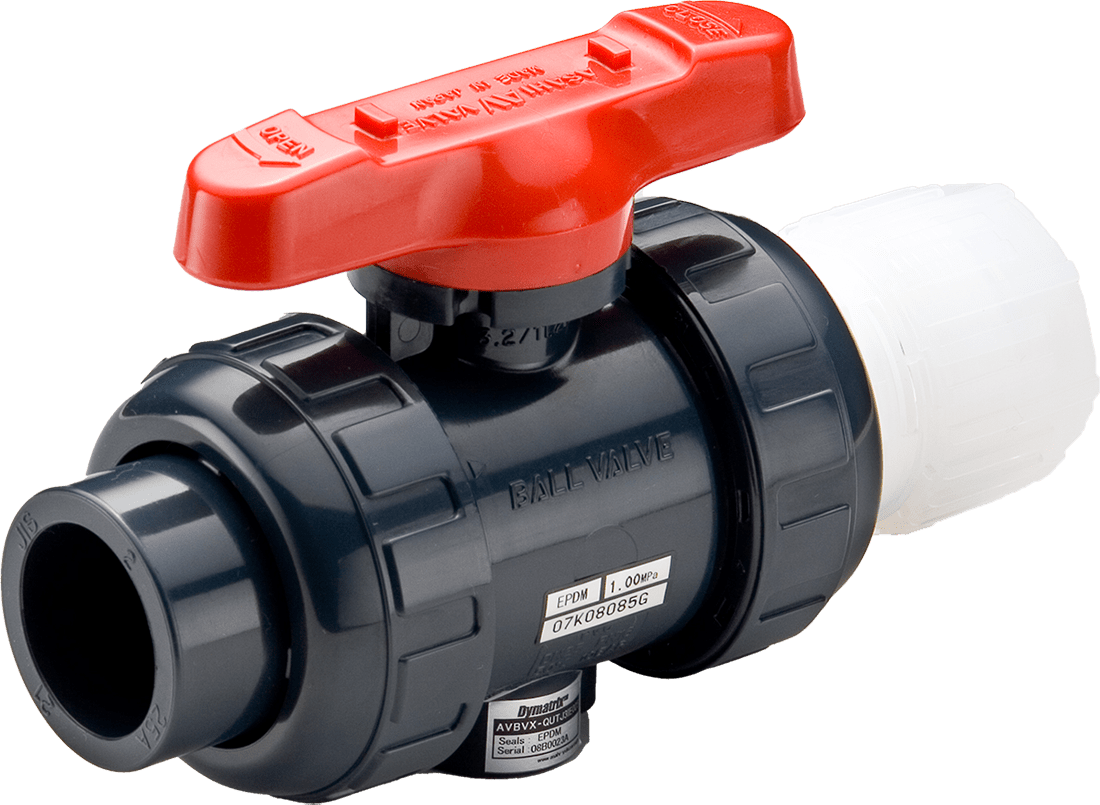

The AVBVX allows for a simple transition between rigid PVC pipe and flexible PFA tubing integrated into Asahi/America’s Type-21 manual ball valve. PFA x PFA versions are also available.
Specifications:
Sizes:
6×4, 10×8, 12×10, 19×16, 25×22
Body:
PVC, CPVC, PP, PVDF
Seat:
PTFE
Connections:
Socket, Threaded, Flanged, series Flowell 60 series, Super Type Pillar fitting, Super 300 Type Pillar fitting , Flare Type, Hose nipple
O-Rings:
FKM, EPDM
Efficient Plumbing
The plumbing from the hard piping to PFA connection was facilitated without the screw connection, and the leakage form the part of screwing in was lost. Moreover, the time of screwing in can be saved.
Abundant line-up
Abundant connection line-up are collected. Out to say nothing of the combination with the hard piping and both sides PFA connection putting is also possible.
