Series 19 Smart Actuators

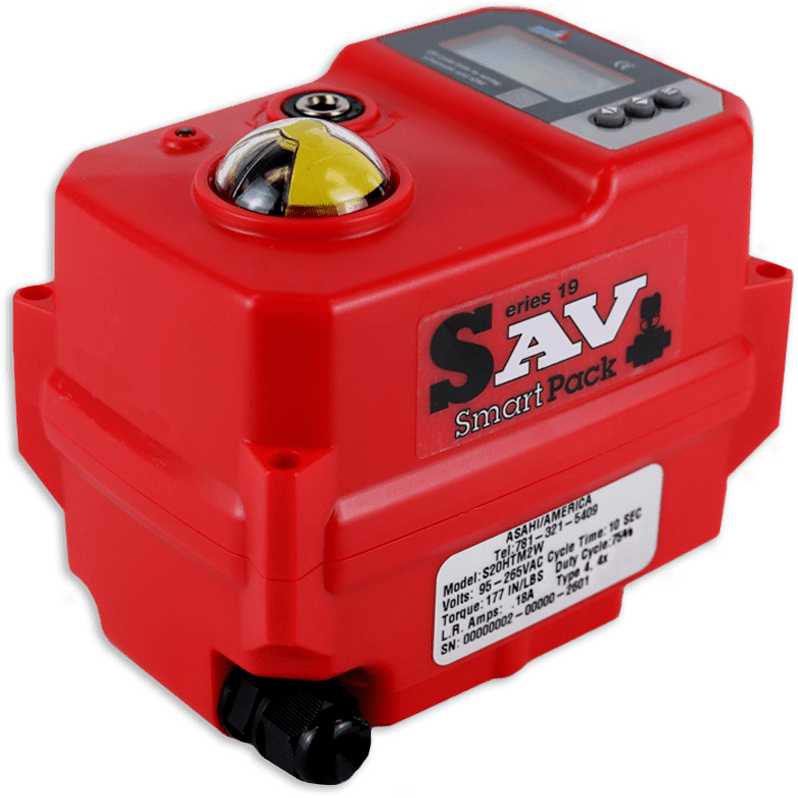

Series 19 Smart SAV Modulating Failsafe Electric Actuators

The Series 19 modulating failsafe combines the features of a modulating unit with the reliability of a failsafe unit. With all of the same features of the modulating unit, the modulating failsafe employs a capacitor discharge design for the failsafe ability. When the power supply is lost, the failsafe system will cycle the valve to a predetermined position (open, closed, or as is).

Document Finder Series 19 Electric Actuators Resources

Resources:

Data Sheets

Specifications:

Sizes:

S20, S50, S110, S400

Amp Draw:

0.34 Amp for S20, 0.39 Amp for S50,

1.24 Amp for S110, 1.83 Amp for S400

Cycle Time:

Per 90 degrees: 10 seconds

Torque:

177 in-lbs to 3540 in-lbs

Electrical Connection:

NEMA 4X cable gland with two-meter color-coded cable

Enclosure:

NEMA 4X

Voltage:

95 VAC to 265 VAC 1Ph 50/60 Hz

24 AC/DC

Max Temp:

150° F

Valve/Actuator Packages

Type-21/21a Ball Valves
Type-23 Multiport™ Ball Valves
Type-57 Series of Butterfly Valves

Features/Benefits

Compact: Perfect for OEM and skid manufacturers
OLED Screen: Displays input command, position status, alert conditions
Push Buttons: Used to calibrate/adjust end positions and operate local controls
Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
Motor: Reversing, brushless DC motor
Gear Train: Permanently lubricated steel gears
Corrosion Resistant Enclosure: NEMA 4X enclosure with stainless steel trim
ISO mounting configuration
Electrical Connection: NEMA 4X cable gland with two-meter cable length
Position Indication: Highly visible beacon position indicator
LED Position Indication: RED closed, GREEN open, BLUE fault
Manual Override: Manually cycle valve via electroless nickel-plated hex key
Selectable Control Signal: User can select 4-20 mA, 0-20 mA, 0-10 VDC, 2-10 VDC, or 1-5 VDC (size 20 is specifically a current control signal or a voltage control signal)
Reverse Acting: User can select standard operation or reverse acting
Selectable Fail Position: If control signal is lost, the unit can be calibrated to fail as is, fail open, or fail close
Transmitter: Current or voltage transmitter (matching the control signal) is standard equipment
Capacitor Discharge System: A capacitor is used in place of batteries for failsafe mode
QR Code: Links to user manual; includes wiring schematic
RoHS Compliant
