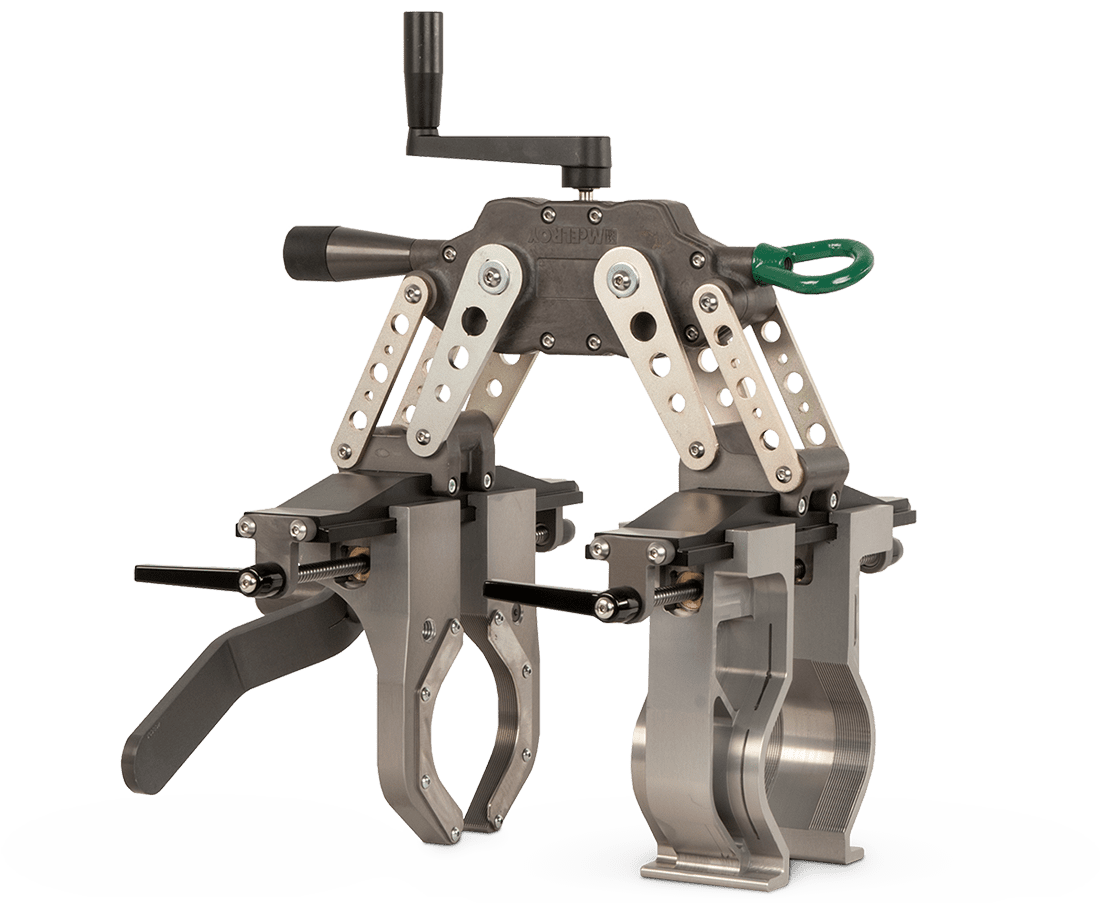

Spider™ Socket Welding Machine
The Spider™ 125 with universal clamping system is the preferred equipment for quick and accurate socket fusion field installations of 63mm to 125mm polypropylene pipe.
The lightweight, compact device features a worm gear drive with parallel link system to bring pipe and fittings together evenly and under control. It features a universal clamping system that can accommodate any size of pipe or coupling, eliminating the need for inserts.
The features of the Spider™ 125 allow a single technician to properly align, heat, fuse and cool the pipe. Because the Spider is non back-drivable, constant pressure is maintained throughout the process.
The Spider™ 125 has proven to be an exceptional tool for performing socket fusions in overhead, vertical and tight work spaces. A full assortment of heaters and heater adapters are available from Asahi/America for pipe sizes in the 63mm to 125mm range.
Resources:
Data Sheet
Operations Manual
Ideal Applications Include:
Please refer to the Welding Selection Chart for ideal applications.
Specifications:
Size Range:
63mm – 125mm (2″ – 4-1/2″)
Piping:
Materials:
Dimensions (open):
22″ x 16″ x 11-1/2″
Shipping Dimensions:
32″ x 23″ x 14″
Shipping Weight:
50 lbs.
- Hand-powered
- No inserts necessary
- Universal clamping jaw system fits all pipe brands and fittings
- Non back-drivable gearing, self-locking
- Two-position support handle
- Lightweight and compact
- Self-centering
- Wide jaws provide stability on pipe
- Heavy-duty plastic shipping case included
- Socket Fusion
