SP Series High Purity Welding

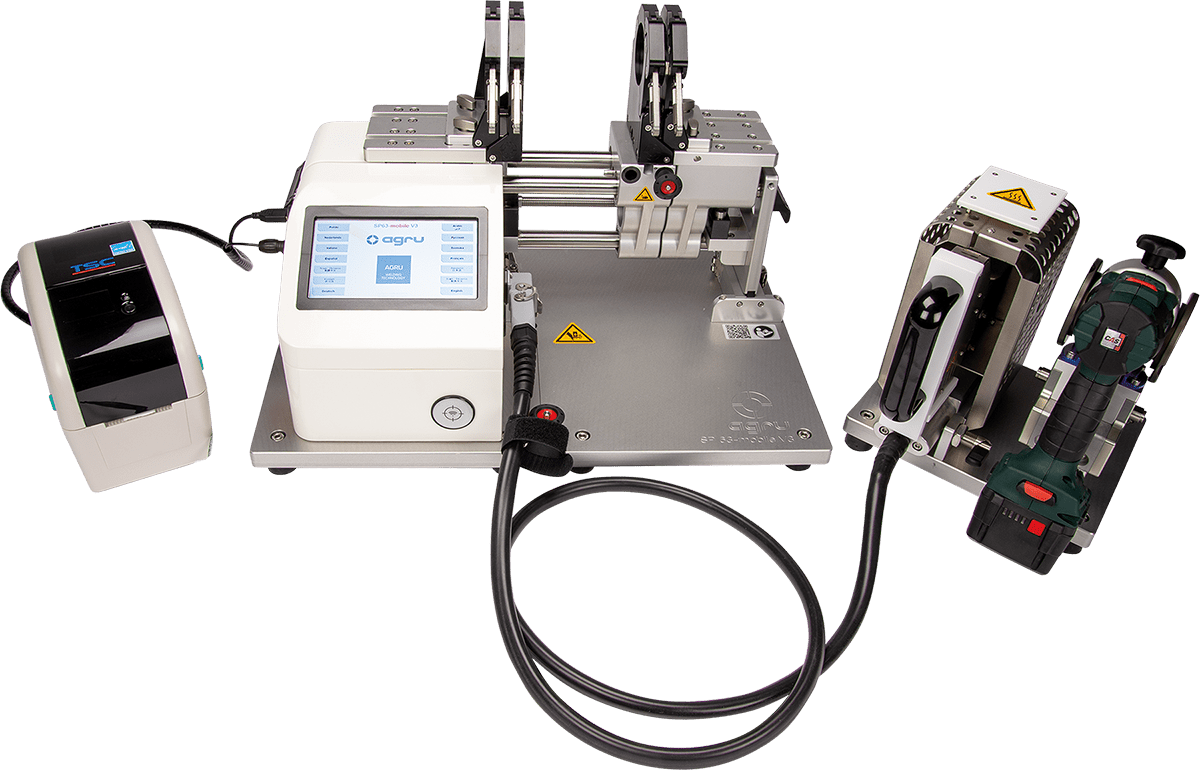

SP 63-S Mobile V3
Available for purchase only
The SP 63-V3 Mobile is designed with ergonomic and safety features, optimized specifically for cleanroom environments. It is suitable for pipe rack installations, equipped with an integrated remote weld unit that supports both horizontal and vertical weld positions. Compatible with all AGRU piping systems, it can also accommodate PFA pipes and tubing upon request. The system allows for tie-in welds and utilizes computer-controlled welding processes for precision. Dimension changes are straightforward, and intelligent sensors ensure repeatable weld results. RFID identification enhances security by certifying welding operators, while preprogrammed weld parameters streamline the process for all weldable sizes. Furthermore, the fully automated weld data recording and labeling guarantee 100% traceability. Operation is user-friendly, featuring a multi-language touch screen with 3D visualization for enhanced interaction and control.
Resources:
Data Sheet
Operations Manual
Ideal Applications Include:
Best used for PP, PVDF thermoplastic piping system welds. Please refer to the Welding Selection Chart for ideal applications.
Specifications:
Size Range:
20mm – 63mm (1/2″ – 2″)
Piping:
Materials:
Power:
Plug: 110V
Tool: 230V / 15A
Dimensions:
22″ x 15″ x 13″
Weight:
75 lbs.
Shipping Dimensions:
48″ x 40″ x 37″
Shipping Weight:
500 lbs.
- Ergonomic and safe
- Optimized for cleanrooms
- Suitable for pipe rack installation with integrated remote weld unit (horizontal and vertical weld positions)
- Suitable for all AGRU piping systems (on request also for PFA pipes and tubing)
- Suitable for tie in welds
- Computer-controlled welding processes
- Simple dimension change
- Intelligent sensors for repeatable weld results
- RFID identification for certified welding operators
- Preprogrammed weld parameters for all weldable sizes
- Fully automated weld data recording and weld label provide 100& traceability
- Operation in multiple languages on touch screen with 3D visualization
