Butt Welding
Maxiplast® System powered by the McElroy Polygon™
Available for purchase or rental

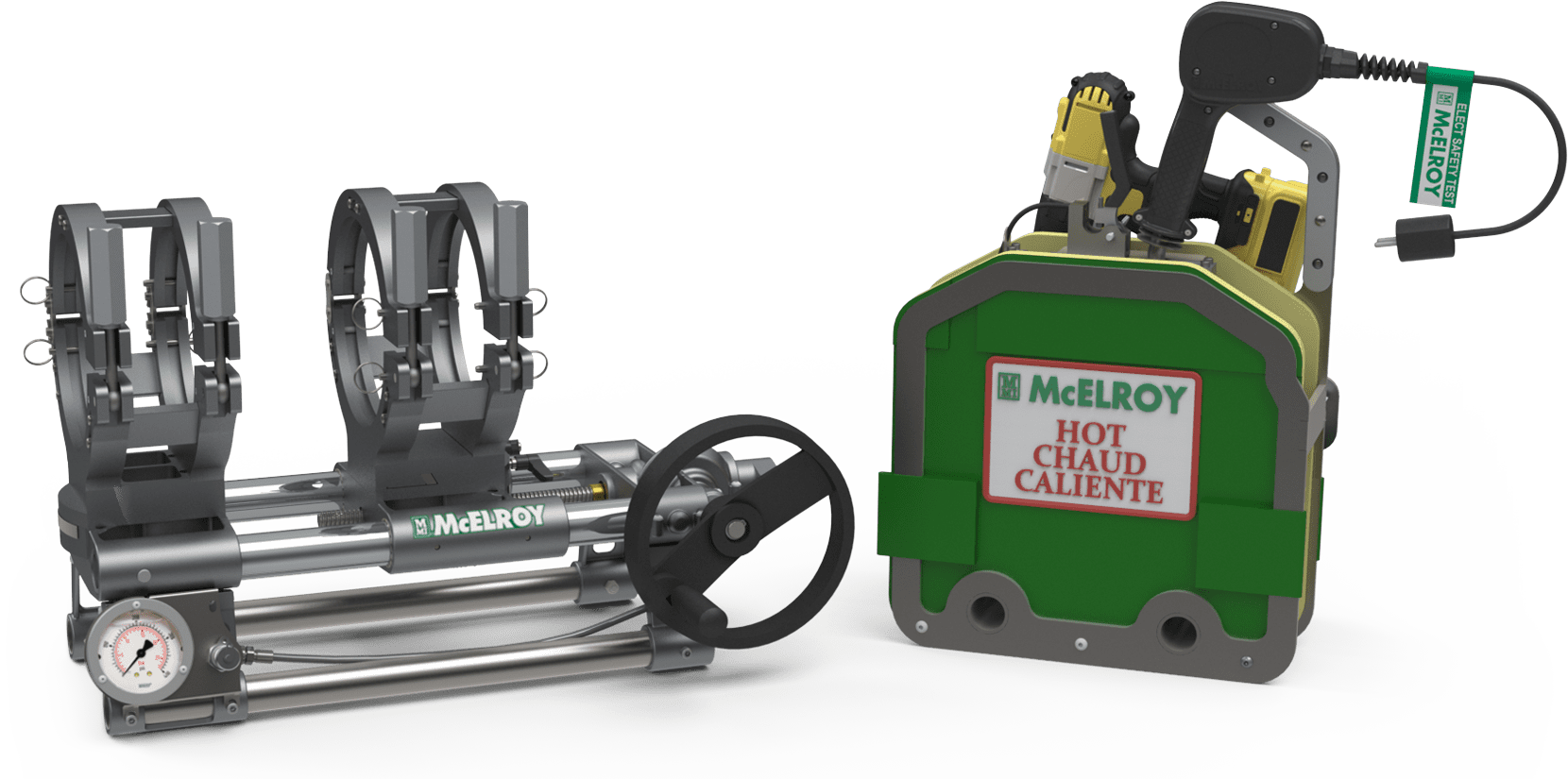

The more robust Maxiplast® System powered by the McElroy Polygon™ allows installers the flexibility to complete butt and miter fusions from zero- to 45-degree angles. This tool is the ideal prefabrication tool for 63mm to 160mm pipe installs. The Maxiplast® System powered by the McElroy Polygon™ has a hydraulic port for DataLogger® connection.
Resources:
Data Sheet
Operations Manual
Welding Parameters
Ideal Applications Include:
Please refer to the Welding Selection Chart for ideal applications.
Specifications:
Size Range:
63mm – 160mm (2″ – 6″ nominal)
IPS inserts available 2″ – 6″ (not standard, must be ordered separately)
Piping:
Materials:
Power:
120V (240V optional)
Dimensions:
26″ x 15″ x 17″
Weight:
85 lbs.
Shipping Dimensions:
33″ x 24″ x 19″
Shipping Weight:
160 lbs.
- Produces miter and butt fusion joints
- Pivoting jaws for faster, easier fusion setup
- Easily removable outer jaws for tighter work spaces
- Quick open/close wheel drive for smooth jaw movement
- Side-positioned wheel drive for easier movement of the carriage
- Power required only for the heater; battery-operated drill powers the facer
- Manually-operated machine with DataLogger® capability
- Easy-to-view pressure gauge
- Butt Fusion
- Use of the DataLogger® with the Maxiplast® System powered by the McElroy Polygon™ will record the weld process from start to finish
- IPS inserts available 2” – 6” (not standard, must be ordered separately)
