High Purity Valves

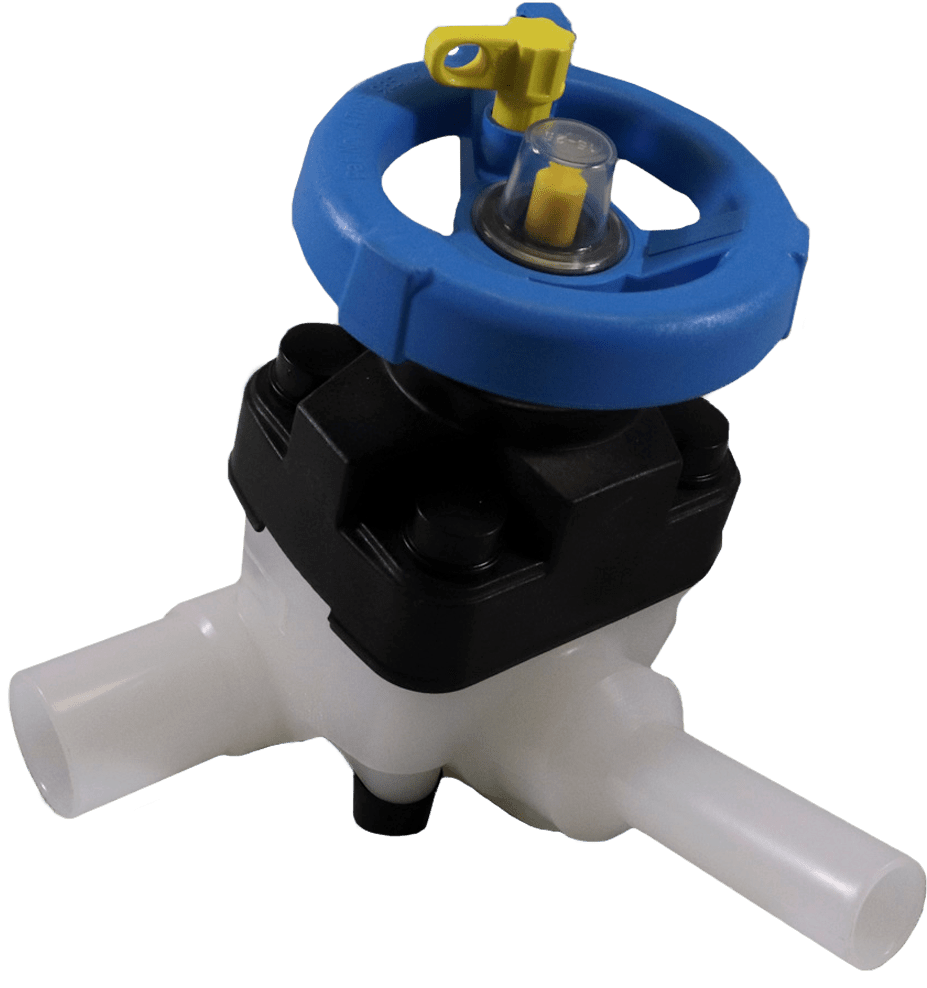

T-343 Diaphragm Valves
For branches and laterals, our T-343 zero dead leg diaphragm valves (ZDLs) eliminate dead space where bacteria can grow. Valves are cleanroom produced, assembled and packaged. All valves come standard with integral lockout device to prevent unauthorized cycling. Valves are 150psi rated at 68° F and designed for high temperature service. Fully serviceable with replacement diaphragms available.
Resources
Data Sheets
Ideal Applications Include:
Lateral/Branch Isolation, UPW, WFI, RO/DI Systems, Semiconductor, Photovoltaic, Pharmaceutical, Biotech, Institutional, Laboratory Research, Nanotech
Supply Range:
Purad® UHP PVDF
T-343 zero dead leg (ZDL) valve: 20 – 110mm (1/2″ – 4″)
PolyPure® Natural Polypropylene
T-343 zero dead leg (ZDL) valve: 20 – 63mm (1/2″ – 2″)
PP-Pure® Pigmented Polypropylene
T-343 zero dead leg (ZDL) valve: 20 – 63mm (1/2″ – 2″)
- T-343 diaphragm valves (PVDF, PPn, and PP)
- T-343 polypropylene valves are available in high purity Purad® PVDF, PolyPure® Natural PP or PP-Pure® Pigmented PP resins
- Valves are supplied with either PTFE backed EPDM or EPDM diaphragm seals
- Valves are cleanroom produced and assembled
- T-343 valves come standard with integral lockout device to prevent unauthorized cycling
- All valves are 150psi rated at 68° F
- Air-to-spring (open & closed)
- Air-to-air
- Min/max stroke limiter
- Electric position feedback
- Magnetic position feedback
- Manual override handwheel
