High Purity Valves

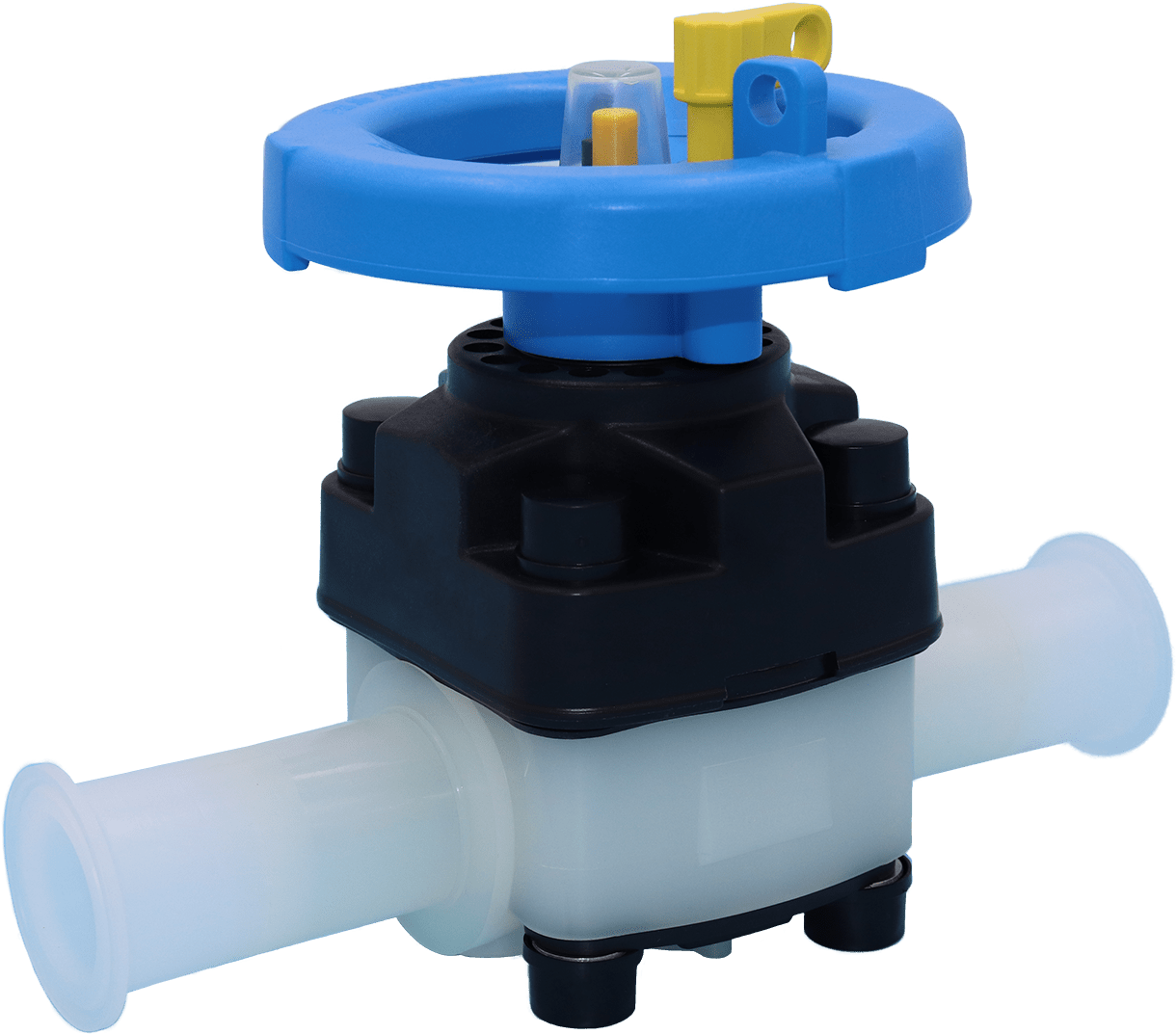

T-342 with Sanitary Connections
The sanitary end connections for the T-342 diaphragm valve (available in PVDF, PPn, and PP) are added using beadless welding, which leaves no weld bead or crevice for bacteria buildup. Available in 1/2″ – 2″ (20mm – 63mm) in Purad PVDF®, PolyPure® PPn, or PP-Pure® PP high purity resins. The T-342 diaphragm valve with sanitary end connectors is fabricated in our class 1000 cleanroom. The valve comes cleaned and double bagged for shipping to ensure a particle-free product arrives at the jobsite.
Resources:
Data Sheet
Ideal Applications Include:
Islolation & Throttling Valves, UPW, WFI, RO/DI Systems, Semiconductor, Photovoltaic, Pharmaceutical, Biotech, Institutional, Laboratory Research, Nanotech
Specifications:
Materials:
Purad® UHP PVDF, PolyPure® natural polypropylene, PP-Pure® pigmented polypropylene
Sizes:
1/2″ – 2″ (20 – 63mm)
Bonnet Material:
PPG
Diaphragm:
PTFE with EPDM backing; EPDM
Operator:
Hand wheel
- Unibody molded construction valve
- Beadless welds maintain smooth pipe ID with no weld bead or crevices for bacteria build-up
- Ideal for lifescience and pharmaceutical industries
- Fabricated in a class 1000 cleanroom
- Cleaned and double bagged for shipping
- No wetted metal components
- Integral lockout device to prevent unauthorized cycling can be locked in multiple positions
- Position indicator with marked 25%, 50%, and 75% open positions
- Fully serviceable with replacement diaphragms available
- Air-to-spring (open & closed)
- Air-to-air min/max stroke limiter
- Electric position feedback
- Magnetic position feedback
- Manual override handwheel
