High Purity Accessories

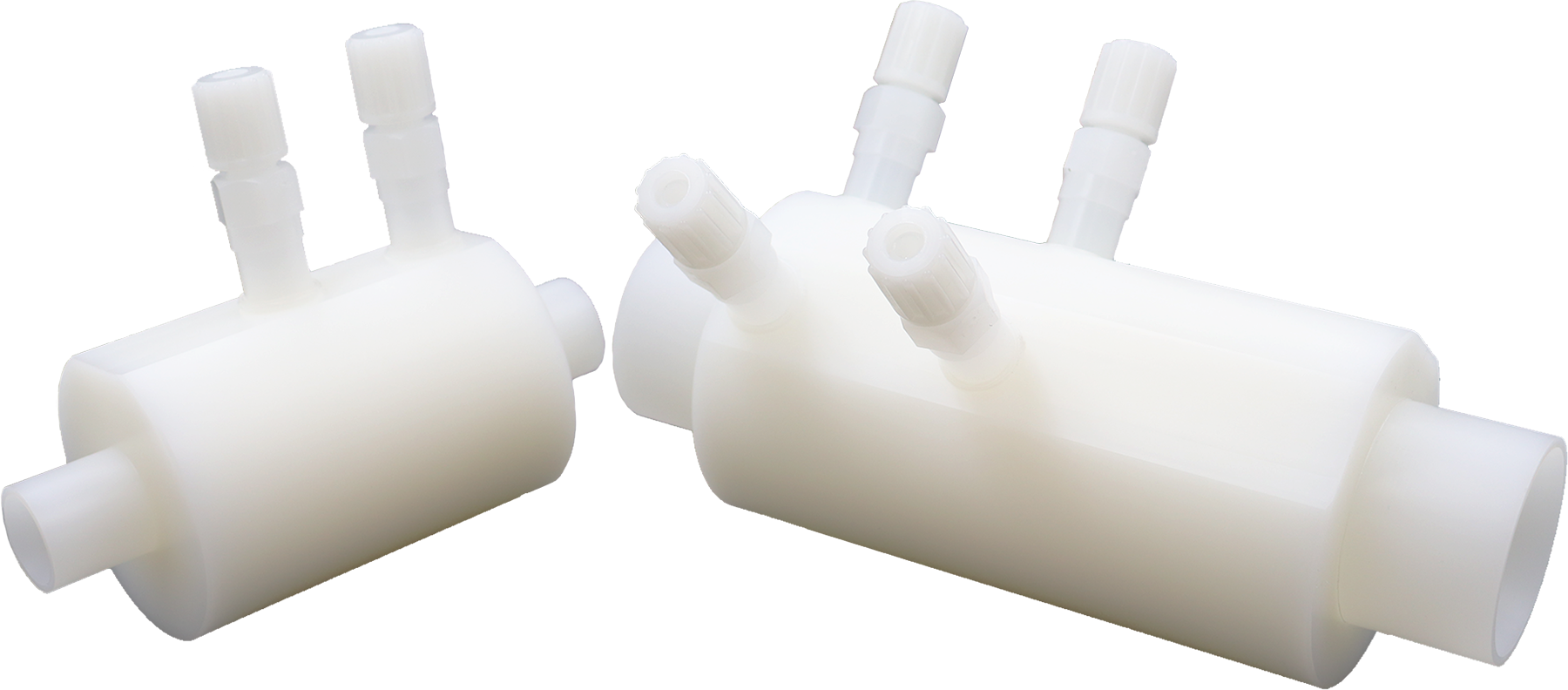

Faucet Diverter
The high purity faucet diverter features a CFD-optimized design that minimizes pressure loss while maximizing flow through the faucet. It contains no wetted metal components and creates a pressure differential to ensure proper recirculating flow to and from faucet(s). The diverter is manufactured from high-purity PVDF or natural polypropylene material and is shipped cleaned and bagged to maintain purity. It utilizes industry-standard tubing connections, and a single diverter can be configured to connect one or two faucets, providing a cost-saving option.
Resources:
Data Sheet
Ideal Applications Include:
Please consult us for the best recommendation.
Specifications:
Sizes:
Purad® (PVDF): 3/4″ – 2-1/2″
PolyPure® (PP): 3/4″ – 2-1/2″
End Connections:
Metric (DIN) spigot standard (optional sanitary adapter)
Tube Connection:
3/8″ Flare
Single or double faucet
Pressure Rating:
150psi @ 68° F
- CFD optimized design to minimize pressure loss while maximizing flow through the faucet
- No wetted metal components
- Creates pressure differential to ensure recirculating flow to and from the faucet(s)
- Made from high purity PVDF or natural polypropylene material
- Ships cleaned and bagged
- Utilizes industry standard tubing connections
- Options to connect one or two faucets with a single diverter for cost saving
