Chem Proline® System Components

Chem Proline Logo

Chem Proline^® is composed of the latest evolution in Advanced Polyethylene (PE) resin technology. This new Advanced PE material possesses excellent physical and mechanical properties. These properties include: stress crack resistance, slow crack growth resistance, ductility, impact resistance, abrasion resistance and brittleness resistance. Now available in 40" - 98" size size as well!

Capable of handling some of the harshest chemical applications with a long-term expected useful life, Chem Proline^® offers a greater value over metal, FRP, lined steel, or other thermoplastic piping systems like PVC and CPVC. Chem Proline's superior properties make it the only Polyolefin material able to handle certain chlorinated services like sodium hypochlorite. UV resistant, light weight, proven fusion joining technology, Chem Proline^® is perfect for most chemicals found in the water treatment process.

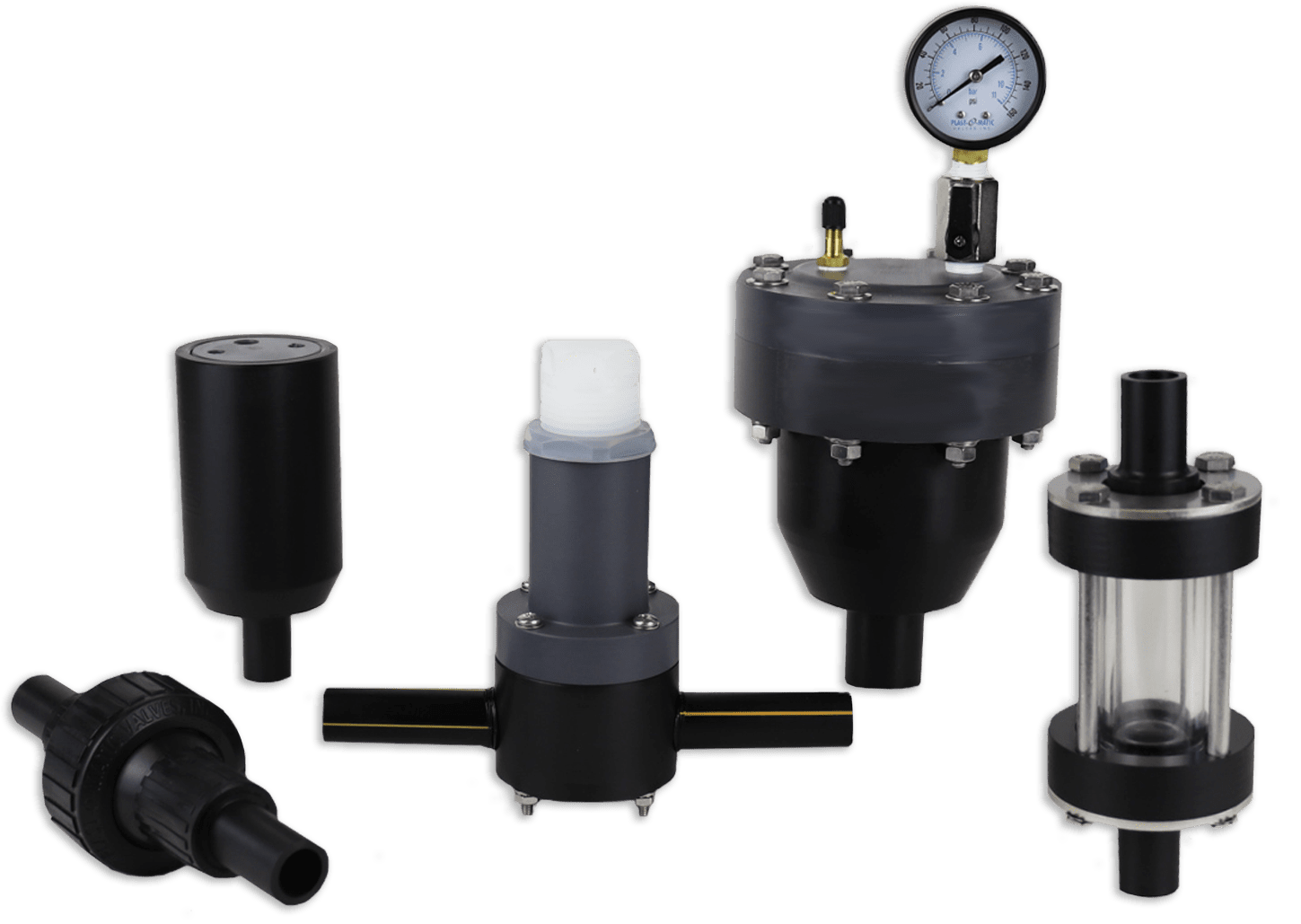

In addition to offering Chem Proline® Advanced PE pipe, fiittings and valves we also feature a fide array of componets including back pressure regulators, relief valves, calibration columns, gauge guards and pulsation dampeners all available with thread-free connections.

Back pressure regulators and relief valves	Product Spotlight from TPO Magazine
V86 Back Pressure / Relief Valves Straight (Inline) - Butt/IR Ends	1/2" - 2" Butt/IR end connectors Process fluid is isolated from mechanical parts Adjustable under working pressure Adjustment range of 7psi (0.5 bar) to 135psi (9.5 bar)outlet with an inlet of 145psi (10 bar) Low hysteresis: 1.5psi (0.1 bar) to 8.7psi (0.6 bar) Highly accurate and stable control
V86 Back Pressure / Relief Valves Straight (Inline) - Socket Union	1/2" - 2" Socket end connectors Straight (inline) Process fluid is isolated from mechanical parts Adjustable under working pressure Adjustment range of 7psi (0.5 bar) to 135psi (9.5 bar)outlet with an inlet of 145psi (10 bar) Low hysteresis: 1.5psi (0.1 bar) to 8.7psi (0.6 bar) Highly accurate and stable control
V86 Back Pressure / Relief Valves Angle - Butt/IR Ends	1/2" - 2" Butt/IR end connectors Angle Process fluid is isolated from mechanical parts Adjustable under working pressure Adjustment range of 7psi (0.5 bar) to 135psi (9.5 bar)outlet with an inlet of 145psi (10 bar) Low hysteresis: 1.5psi (0.1 bar) to 8.7psi (0.6 bar) Highly accurate and stable control
V86 Back Pressure / Relief Valves Angle - Socket Union	1/2" - 2" Socket end connectors Angle Process fluid is isolated from mechanical parts Adjustable under working pressure Adjustment range of 7psi (0.5 bar) to 135psi (9.5 bar)outlet with an inlet of 145psi (10 bar) Low hysteresis: 1.5psi (0.1 bar) to 8.7psi (0.6 bar) Highly accurate and stable control
Gauge Guards EM-Technik Series 3D Diaphragm Gauge Guard	PTFE-TFM diaphragm Long life, zero maintenance Large diaphragm for precise measurement Welds directly into Chem Proline® Advanced PE piping system
Calibration Column	Clear PVC Tube Socket connection EPDM or FKM 1/2" - 1" Weld directly into Chem Proline® PE system No threaded or glued joints 100mL to 4,000 mL range Clear PVC tube
