Piping Systems & Welding

Duo-Pro® - PP, PVDF, E-CTFE

Duo-Pro-PP

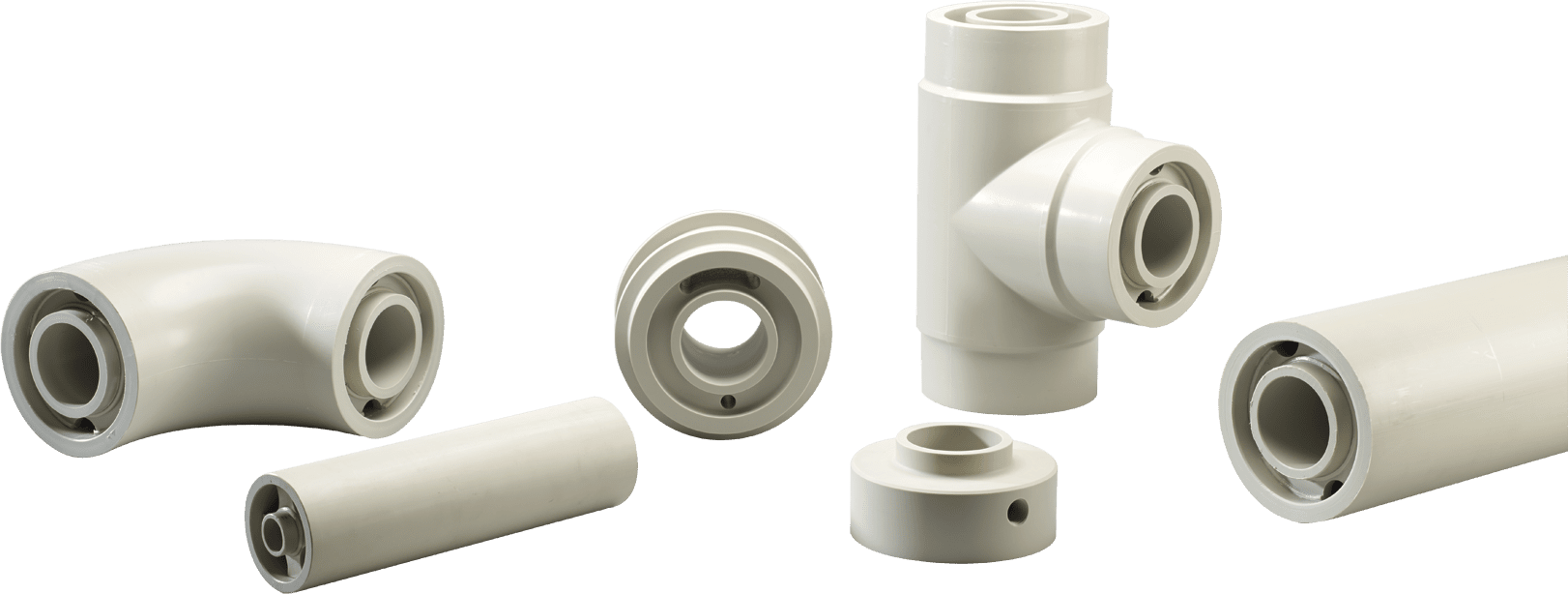

Plastic Double Containment Piping Systems

Duo-Pro® Engineered Double Containment Piping System

The premier double containment piping system offered on the market today, Duo-Pro® has been successfully installed in several Fortune 500 companies including semiconductor, pharmaceutical and chemical processing industries.

Duo-Pro® offers maximum versatility to meet the unique requirements of each individual application. The mix and match feature allows system designers to specify pipe material and ratings based on media and pressure changes throughout an entire system. Duo-Pro® systems are shipped fully fabricated and ready for installation from component pieces to prefabricated spools, welded by trained professionals.

Resources

Data Sheet

Specification

Asahi Minute Video



Ideal Applications Include:

Drainage applications, pressurized transfer lines, manufacturing, underground installations

Supply Range

Pipes & Fittings:

1x3 through 16x20

Ratings:

150 psi and Drainage

Materials:

Polypropylene, PVDF, & ECTFE (Halar®)

Features/Benefits

  • The system uses proven, highly corrosion resistant materials such as Copolymer Polypropylene and Super Proline PVDF
  • Fluids can be pumped through the carrier pipe up to 150 psi
  • Can be assembled using simultaneous butt or staggered butt fusion
  • Leak detection cable can be easily installed in sizes 3x6 and higher

Welding

  • Simultaneous Butt Fusion
  • Staggered Butt Fusion

Options

  • Leak Detection
