Resources:

Data Sheet

Dimensional Guides

Specifications

Ideal Applications Include:

Isolation Valves, Water Treatment, Water Features, Fountains, Aquariums, Landfills, Swimming Pools, Power Plants, Mining, Transportation

Specifications:

Sizes:

Lever: 3″ – 8″
Gear: 3″ – 8″

Body:

PVC

Seats:

EPDM, FKM, or Nitrile

Seals:

Same as seating material

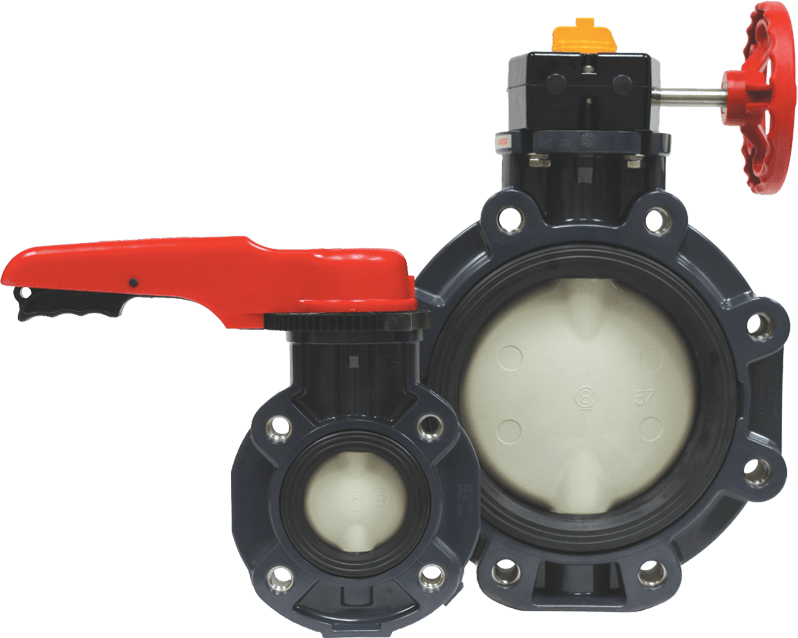

Models:

Wafer Style or Lug Style with 316SS lug inserts

Operators:

Lever and Plasgear®

Discs:

PVC, CPVC, PP and PVDF

Stems:

316 stainless steel, Titanium, Hastelloy C® ‡

  • Direct replacement for metal valves conforming to ISO-5752 short face-to-face dimensions
  • Standard model has PVC body with PP disc for superior chemical and corrosion resistance as well as elevated temperature capabilities
  • Non-wetted 316 SS stem has full engagement over the entire length of the disc and is totally isolated from the media
  • Full seat design isolates the body and stem from the media and acts as mating flange gaskets
  • Integral body stops in valve body to prevent overtightening of mating flanges
  • Spherical disc design for improved Cv and superior durability
  • Integral locking lever handle w/ 21 position throttling plate
  • Plasgear™ operator – Industry first composite enclosure gear-operator
  • Integral ISO-5211 top mounting pad for actuation mounting
  • Polypropylene stem retainer to prevent stem
