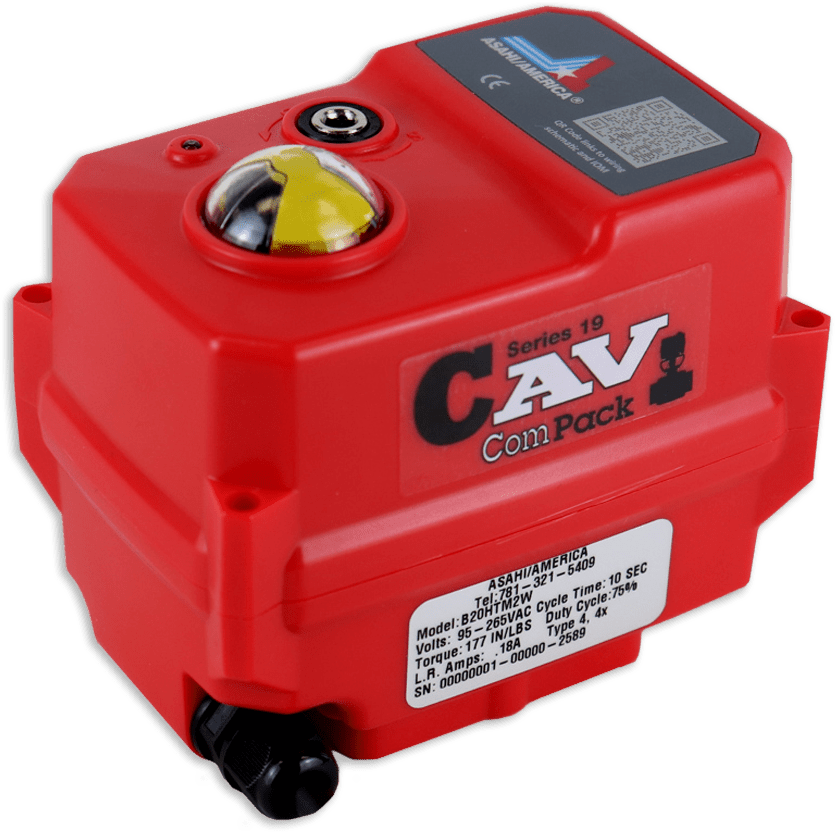

Series 19 CAV Compact On/Off Electric Actuator

The basic Series 19 CAV Com Pack® is a mechanical-type actuator available as an on/off unit. The CAV Com Pack® mounts on Asahi/America’s Type-27 Omni® ball valves, Type-21 ball valves, and Type-23 Multiport™ ball valves to provide smooth operation in a compact and lightweight package. The Com Pack® Series 19 fits Omni® ball valve sizes 3/8” to 2”, Type-21 and Type-23 ball valve sizes 1/2" - 2" and has a cycle time of 10 seconds per 90 degrees.

AIA FindUsIn MasterSpec Deltek Specpoint 2c full CMYK 01

Button CAV On Off

 Button CAV Fail Safe

 Button Smart On Off

 Button Failsafe

 Button Modulating

 Button Mod Failsafe
Multiturn On Off 01

 Multiturn Modulating 01


New CAV Compact

Series 19 CAV On/Off Valve/Actuator Packages

Ball Valves
Series 19 CAV on Type 27 Series 19 CAV on Type 21 Series 19 CAV on Type 23
Button CAV Type 27 01 Button CAV Type 21 01 Button CAV Type 23 01
Ideal Applications Include:

Remote locations, locations with no air supply, colder temperatures, smaller valves, low cost applications

Sizes:

C20 for 3/8" - 2" Omni® Type-27 ball valves

C20 for 1/2" - 2" Type-21 ball valves and Type-23 Multiport® ball valves

Amp Draw:

0.18 Amp

Cycle Time:

Per 90 degrees: 10 seconds

Torque:

177 in-lbs

Electrical Connection:

NEMA 4X cable gland with two-meter color-coded cable

Enclosure:

NEMA 4X

Voltage:

95 VAC to 265 VAC 1Ph 50/60 Hz

24 AC/DC

Max Temp:

150° F

Features/Benefits

  • Compact: Compact and lightweight actuated valve package that is ideal for OEMs
  • Motor: Reversing, brushless DC motor
  • Multi-voltage: 95 VAC to 265 VAC or 24 VAC/VDC
  • Gear Train: Permanently lubricated solid gears
  • Corrosion Resistant Enclosure: NEMA 4X enclosure with stainless steel trim
  • Position Indication: Highly visible dome position indicator
  • LED Position Indication: RED closed, GREEN open
  • Manual Override: Manually cycle valve via electroless nickel-plated hex key
  • Auxiliary Contacts: Open and closed dry contacts rated 0.1 Amp @ 250 VAC, 0.5 Amp @ 30 VDC
  • Space Heater: A two-watt heater is internally wired to limit condensation
  • QR Code: Links to user manual; includes wiring schematic
  • RoHS Compliant
