Valves & Actuation
globe-valve

Manual Plastic Valves

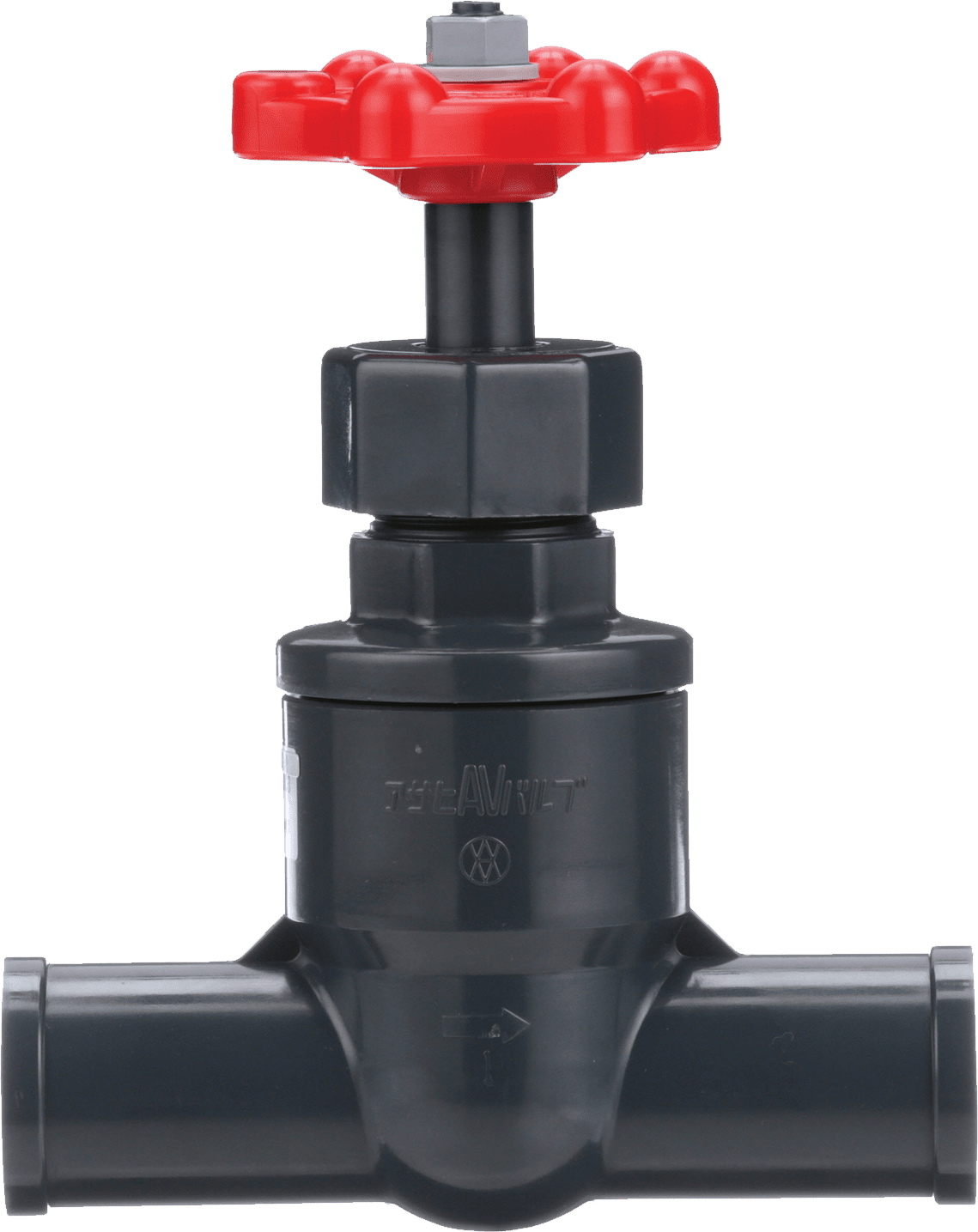

Globe Valves (1/2" – 4")

The flow through a globe valve follows a course that takes nearly two 90° changes in direction. But, because the seating of a globe valve is parallel to the line of flow of the liquid, it can be used to throttle the flow to any required degree or to give positive shut-offs. The economy and dependability of the Asahi/America globe valve make it desirable for many applications where this pressure drop is not critical.

Resources

Data Sheet

Specifications

Ideal Applications Include:

Chemical processing, aquariums, mining, water treatment, landfills

Sizes:

1/2" – 4"

Models:

Flanged: 1/2" – 4"*
Socket PVC: 1/2" – 2"
PP**: 1/2" – 1"
Threaded PVC: 1/2" – 2"
PP: 1/2" – 1"

*2-1/2” – 4”: outside stem and yoke type
** DIN socket also available

Bodies:

PVC and PP

Seals:

EPDM or FKM

Plug:

PP

Features/Benefits

  • Used for efficient throttling of flow
  • Positive shut-off
  • Displays excellent flow regulating characteristics throughout the entire lift of the disc
  • All sizes rated for full vacuum service
  • EPDM seals. FKM optional
